AMP100
Strain Gages Amplifier
The AMP100 is a compact signal conditioner for use with EFE low level sensors (mV/V signal)
- Strain gages amplifier
- All Stainless steel
- Large bandwidth up to 5 kHz
- Robust, compact and light

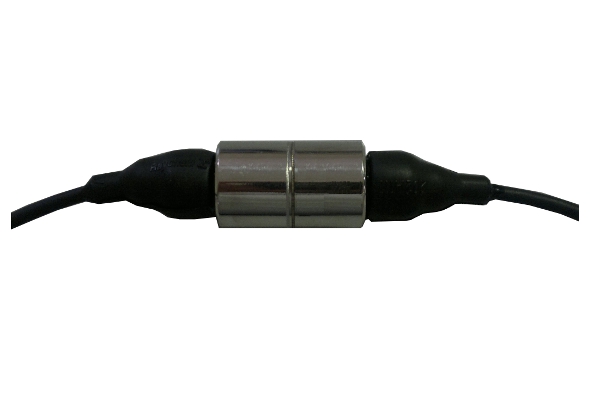

The AMP100 is a compact signal conditioner for use with EFE low level sensors (mV/V signal). It has a metal housing and is usually located in the sensor's cable. It is particularly suitable for use in harsh environments (high temperature, radiations) where the electronics need to be removed from environmental constraints.
Model
Model
Input signal
Sensor's power supply
PDF
AMP103
1 to 4mV/V
5Vdc regulated and stabilized
AMP104
1 to 4mV/V
5Vdc regulated and stabilized
AMP107
1 to 4mV/V
5Vdc regulated and stabilized
Documents to download
Document's type
Technical specifications
Product category
Amplifier
Consumption
< 10mA
Sensor's power supply
5Vdc regulated and stabilized
Input signal
1 to 4mV/V
Signal bandwidth
1000Hz @ -3dB
Operating temperature range
-40 to +125°C
Electrical connection
MIL C-26482 6 pins connector
Documents to download
Document's type
Technical specifications
Product category
Amplifier
Consumption
< 10mA
Sensor's power supply
5Vdc regulated and stabilized
Input signal
1 to 4mV/V
Signal bandwidth
1000Hz @ -3dB
Operating temperature range
-40 to +125°C
Electrical connection
MIL C-26482 6 pins connector
Documents to download
Document's type
Technical specifications
Product category
Amplifier
Consumption
< 10mA
Sensor's power supply
5Vdc regulated and stabilized
Input signal
1 to 4mV/V
Signal bandwidth
1000Hz @ -3dB
Operating temperature range
-40 to +125°C
Electrical connection
MIL C-26482 6 pins connector
